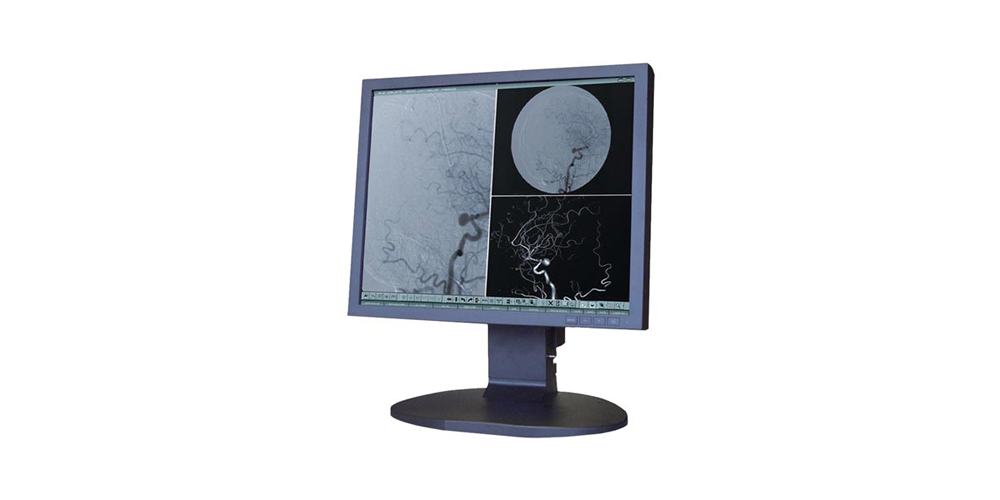

JVC 19” Grayscale Imaging LCD (ME195)

The JVC ME195 (formerly Totoku ME195) is equipped to fulfill all requirements for a universal, high-end modality display. The brightness of 1500 cd/m² enables a perfect image quality even under difficult ambient conditions. A wide range of different Gamma Presets and adjustment possibilities will secure an accurate reproduction of the modality image. Compared to the conventional CCFL backlight models, ME195 saves about 20% energy and will hold brightness much longer. JVC's built-in luminance sensor consistently monitors and accurately stabilizes luminance on the screen to optimize image quality all the time. Click here to view a PDF brochure.

    Technology: 19.0" , monochrome, TFT, IPS technology
    Area: 376mm x 301mm
    Pixel Pitch: 0.294 mm x 0.294 mm
    Contrast Ratio: 1000:1 (typ)
    Luminance: 1400 cd/m² (typical), 450 cd/m² (Calibrated)
    Viewing Angle: 170° horizontal and vertical (typ)
    Input Signal: VGA D-sub mini 15pin, DVI-D 24pin, BNC x 3
    Output Signal: BNC Analog Video
    Worldwide Medical Safety Standards, Luminance Stabilizing System, Built-in Power Sup
