JVC 5MP Color Mammo/Tomo LCD (CL-S500)

Tomosynthesis vs. Mammography: Which is Better?

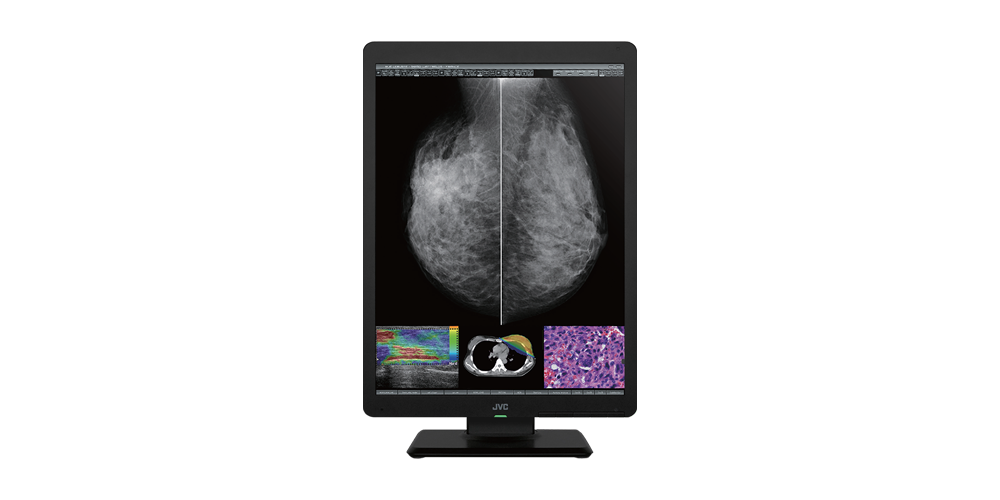

The JVC CL-S500 is a 5MP, 21.3”, color monitor that renders more precise color and monochrome images, new and improved brightness and contrast, and advanced features. JVC’s built-in self-calibrating sensor ensures that the monitor constantly performs at its best. The CL-S500 is 510(k) cleared to use for diagnosic digital imaging for all modalities including Digital Mammography, FFDM, and Breast Tomosynthesis. Click here to view a PDF brochure.

    Display Type: 21.3" Color
    Technology: TFT IPS LED-backlit panel
    Resolution: 2048 x 2560
    Max Brightness: 1150 cd/m2
    Contrast Ratio: 2000:1
    Inputs/Outputs: DisplayPort, DVI-D
    Advanced New Features: Reading Light, Human Presence Sensor

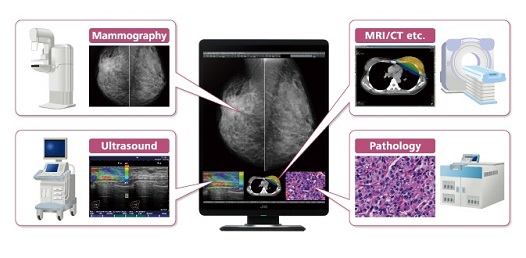

5MP Color Monitor Designed for Multiple Modalities

The JVC CL-S500 can accommodate images from any modality including Digital Mammography/Tomosynthesis, US, CT, MRI and Pathology.

jvc cls 500 multi modality

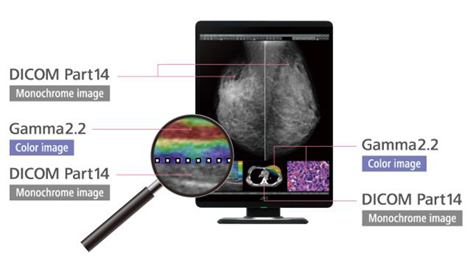

Dynamic Gamma

Color images are automatically recognized to provide optimized contrast, brightness and gamma. No user intervention is required.

jvc cls 500 dynamic gamma

Auto Text Mode

Brightness is automatically adjusted on patient lists, reporting applications, and documents to reduce eye strain.

jvc cls 500 auto text mode

Integrated QA Solution

QA Medivisor Agent providing calibration and QA standard testing through a straightforward user interface is effective to manage daily operation.

jvc cls 500 integrated QA solution

Self-Calibration

With the integrated color front sensor, the CL-S500 self-calibrates to the DICOM Part 14 Standard on a regular schedule.

jvc cls 300 self calibration

Built In Ambient Light Sensor
jvc cls 500 built in sensor

Razor-sharp Color Precision

Utilizing its unique X, Y, Z, color level tracking and color management technologies, any of the i3 models perfectly color-matches one another.

jvc cls 300 color precision

Stable Image Representation

The luminance and color stabilization system contributes to improved image representation for an efficient reading environment.

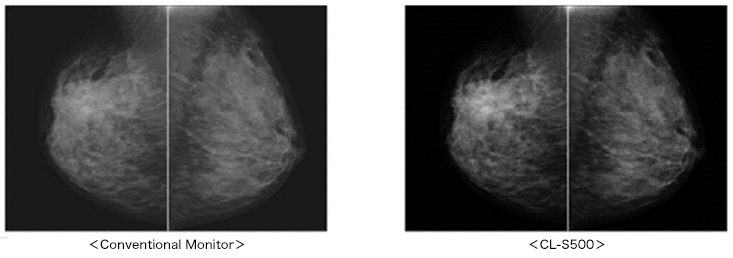

Improved Diagnostic Visibility

A contrast ratio of 2000:1 delivers crisper images and gives radiologists confidence in breast image interpretation to improve work efficiency.

jvc cls 500 improved diagnostic imaging

Low Blue Light Panel

The CL-S500 comes with a low blue light panel, which reduces strain on the eyes while reading.

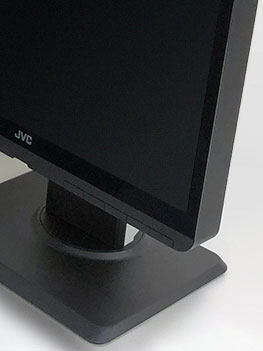

Protective Glass Filter

Glass filter with anti-reflect coating protects the LCD panel from dust or scratches.

jvc cls 300 color precision

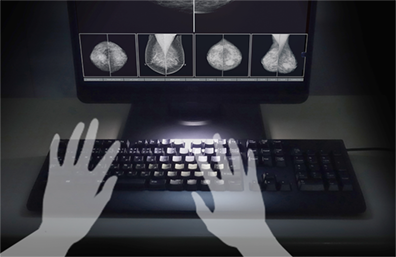

Reading Light

An all new, integrated reading light illuminates your keyboard in low light environments. The ambient sensor automatically adjusts the brightness to the room lighting conditions.

jvc cls 500 reading light
