jvc cls300

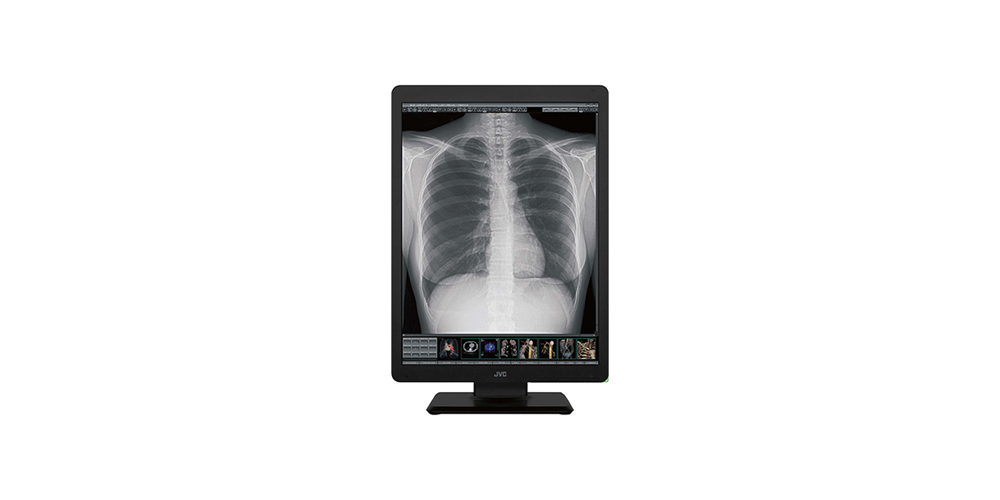

JVC 3MP Color Diagnostic LCD (CL-S300)

The JVC CL-S300 is a 3MP, 21.3”, color monitor for a wide range of diagnostic applications. This new i3 color series display renders more precise color and monochrome modality images. JVC’s built-in self-calibrating sensor ensures that the monitor constantly performs at its best. Click here to view a PDF brochure.

    21.3” color TFT IPS LED-backlit technology
    Contrast Ratio: 1500:1 (typ)
    Luminance: 1000 cd/m² (typ) Maximum
    Calibrated Luminance: 410 cd/m² / 500 cd/m²
    Native Resolution: 1536 x 2048
    Inputs: DVI-D & DisplayPort
    Plug and Play DDC2B compliant

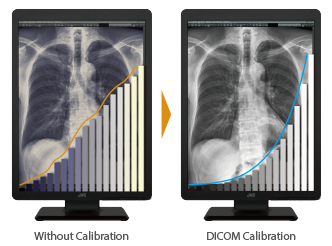

Clearly Defined Diagnostic Images

The new i3 Color Series renders more precise color and monochrome modality images. One of its unique technologies - the built-in self-calibrating sensor - ensures that the monitor constantly performs at its best.

jvc cls 500 multi modality

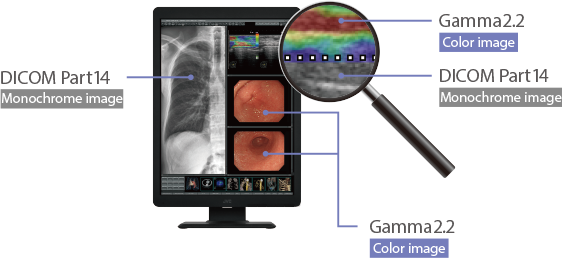

Dynamic Gamma

Color images are automatically recognized to provide optimized contrast, brightness and gamma. No user intervention is required.

jvc cls 500 dynamic gamma

Integrated QA Solution

QA Medivisor Agent providing calibration and QA standard testing through a straightforward user interface is effective to manage daily operation.

jvc cls 500 integrated QA solution

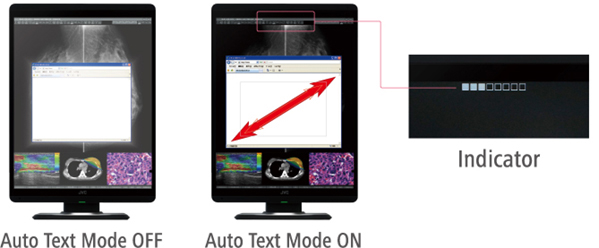

Auto Text Mode

Brightness is automatically adjusted on patient lists, reporting applications, and documents to reduce eye strain.

jvc cls 500 auto text mode

Self-calibration

With the integrated color front sensor, the CL-S300 self-calibrates to the DICOM Part 14 Standard on a regular schedule.

jvc cls 300 self calibration

Built In Ambient Light Sensor
jvc cls 500 built in sensor

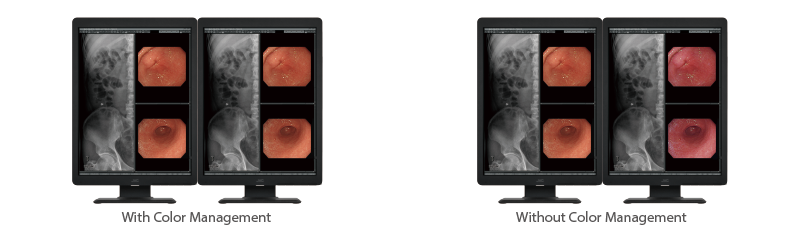

Razor-sharp Color Precision

Utilizing its unique X, Y, Z, color level tracking and color management technologies, any of the i3 models perfectly color-matches one another.

jvc cls 300 color precision

Premium Design

A simple and slim design for a modern look.

jvc cls 300 premium design

LED Indicator / Front Buttons

A simple and slim design for a modern look.

jvc cls 300 led indicator

Space Saving

The new design of the JVC CL-S300 reduces 25% of the stand footprint compared to the conventional models.

jvc cls 300 space saving

Wire Management / DisplayPort Daisy Chains

With the DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.

jvc cls 300 wire management
