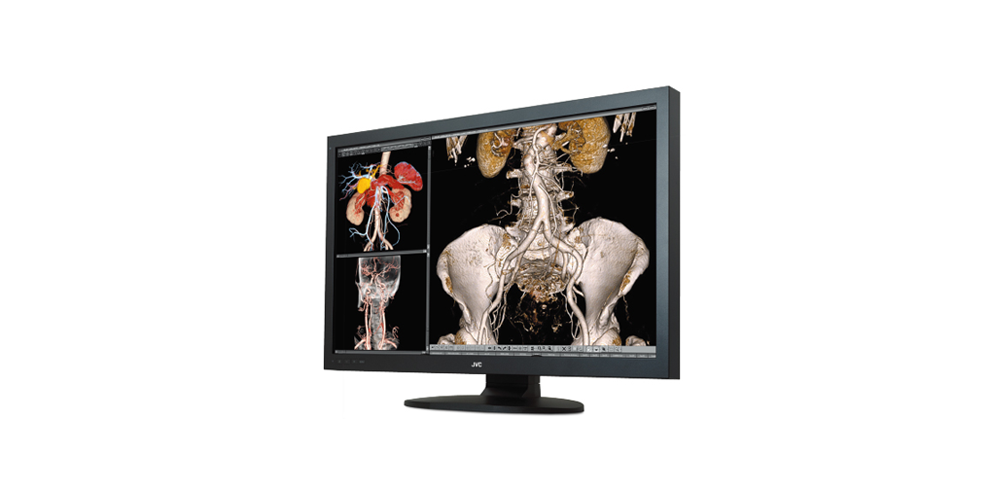

JVC 30" 6MP Color Diagnostic LCD (CCL650i2)

The 6MP JVC CCL650i2 (formerly Totoku CCL650i2) is a widescreen color diagnostic display for new possibilities with streamlined workflow.

With a wide 30″ screen, the new JVC CCL650i2 allows you to view images of two 3MP displays in one beautiful screen without the inconvenience of center bezels. Additionally, the CCL650i2 allows for the flexibility of window layouts in a number of ways supporting multiple system configurations. Providing optimal functions for diagnostic viewing, this wide CCL650i2 improves your workflow efficiency while ensuring space and energy saving.

The CCL650i2 JVC 6MP 30' wide color LCD with 6 MegaPixel resolution provides a viewing area equivalent to two 3MP displays. This design will reduce the burden of your eyes to move one to another in case you have two 3MP displays. The wide screen of the JVC CCL650i2 also enables you to efficiently allocate multiple windows you need to work on. The CCL650i2 requires less footprint compared with two 3MP displays, saving valuable workstation space. Click here to view a PDF brochure


Specifications


Model Name CCL650i2 /AR (with special AR coating), CCL650i2 /N (without coating)

Technology 30.0-inch, TFT color active matrix IPS technology

Display Area 645.5mm × 403.05mm

Pixel Pitch 0.197mm × 0.197mm

Contrast Ratio 1000:1 (typ)

Maximum Luminance 800cd/m² typ. (Calibrated to 410cd/m² and 300cd/m² by factory default)

Viewing Angle 170° vertical and horizontal

Native Resolution 3280 × 2048 (at Fv=30Hz), 1640 × 2048 (at Fv=60Hz)

Display Colors 16.77million colors from a palette of 68 billion colors 1.06 billion colors with DisplayPort and 10-bit viewer

Input Signal DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.1a compliant)

Plug and Play DDC2B compliant

Input Power Supply 100V – 240V 50/60Hz

Maximum Power Consumption 180W (typ)

Calibration Control Luminance, Gamma, Color temperature Capable of storing 3 sets of LUT (An optional Calibration kit is required.)

OSD Information Display Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance and ambient light, DICOM conformance

USB Hub USB Rev. 2.0 compliant, Self-powered
USB upstream connector (×1), USB downstream connector (×2)

Other Features Luminance/color uniformity correction, LED indicator, Multiple LUT, Self DICOM check

Approvals ANSI/AAMI ES60601-1(2005) +A1(2012), CAN/CSA-C22.2 No. 60601-1(2008), CE, FCC-B, ICES-003-B, VCCI-B, FDA510(k)*, J-Moss, RoHS *Pending

Dimensions (Incl. stand) 695.6mm × 512.1/573.6mm × 243.5mm

Weight About 15.5kg

Tilt Stand Tilt, Swivel

Mount VESA mounting 100mm × 200mm, 100mm × 100mm

Security Slot Display, Stand

Accessories Power cord, DVI cable ×2, DisplayPort cable ×2, USB cable, Users manual, Cleaning kit* *Special AR coating model only.
